Features
- Designed for square hole patterns.
- Adjustable spindle spacing: PCD Ø34–Ø206 mm
- Drilling capacity: Ø1 – Ø14 mm
- Reversible spindle rotation for drilling and tapping operations.
- Suitable for automotive and motorcycle parts, bicycles, home appliance components, electronics, furniture manufacturing, and aerospace industries, meeting drilling and tapping requirements for various workpiece materials.

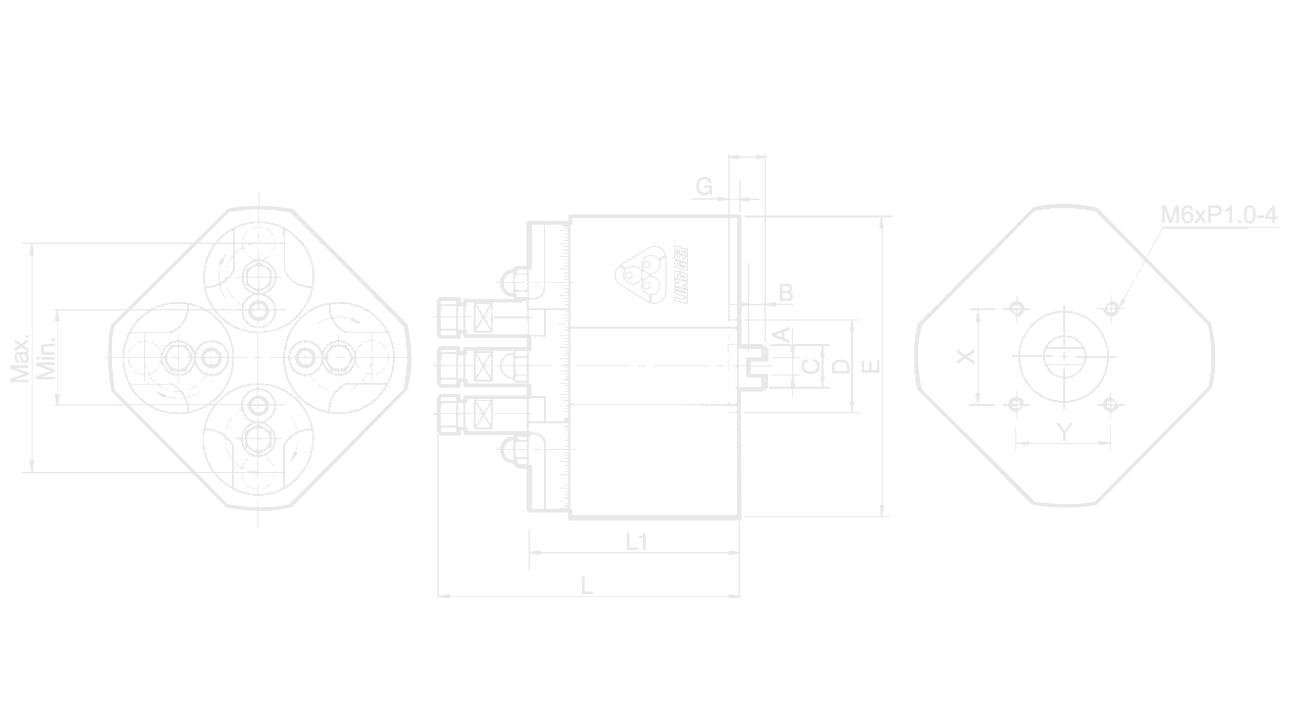

| Model | A | B | C | D | E | G | H | L1 | L | X | Y | Min | Max | Max capacity | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4C-T5 | 10 | 10 | 28 | 55 | 121 | 3 | 15 | 115 | 150 | 70.7 | 70.7 | Ø34 | Ø94 | Ø5 | 5.8 |
| 4C-T7 | 10 | 10 | 28 | 55 | 146 | 3 | 15 | 117 | 149 | 70.7 | 70.7 | Ø42 | Ø114 | Ø7 | 7.3 |
| 4C-T10 | 10 | 10 | 28 | 55 | 170 | 3 | 15 | 109 | 154 | 70.7 | 70.7 | Ø48 | Ø132 | Ø10 | 9.0 |
| 4C-T12 | 10 | 10 | 28 | 55 | 192 | 3 | 15 | 118.5 | 168.5 | 70.7 | 70.7 | Ø58 | Ø158 | Ø12 | 13.0 |
| 4C-T16 | 10 | 10 | 28 | 80 | 260 | 3 | 15 | 145 | 205 | 70.7 | 70.7 | Ø78 | Ø206 | Ø14 | 21.7 |
