Features
- Adjustable spindle spacing: 14 - 200 mm
- Max. drilling capacity in wood: Ø10 – Ø50 mm
- Max. speed: 6000 RPM
- Graduated adjustment scale for precise spindle spacing adjustment and accurate hole positioning.
- Suitable for boards, solid wood, furniture components, toys, and composite materials.
- Compatible with standard drilling machines and automated drilling equipment.

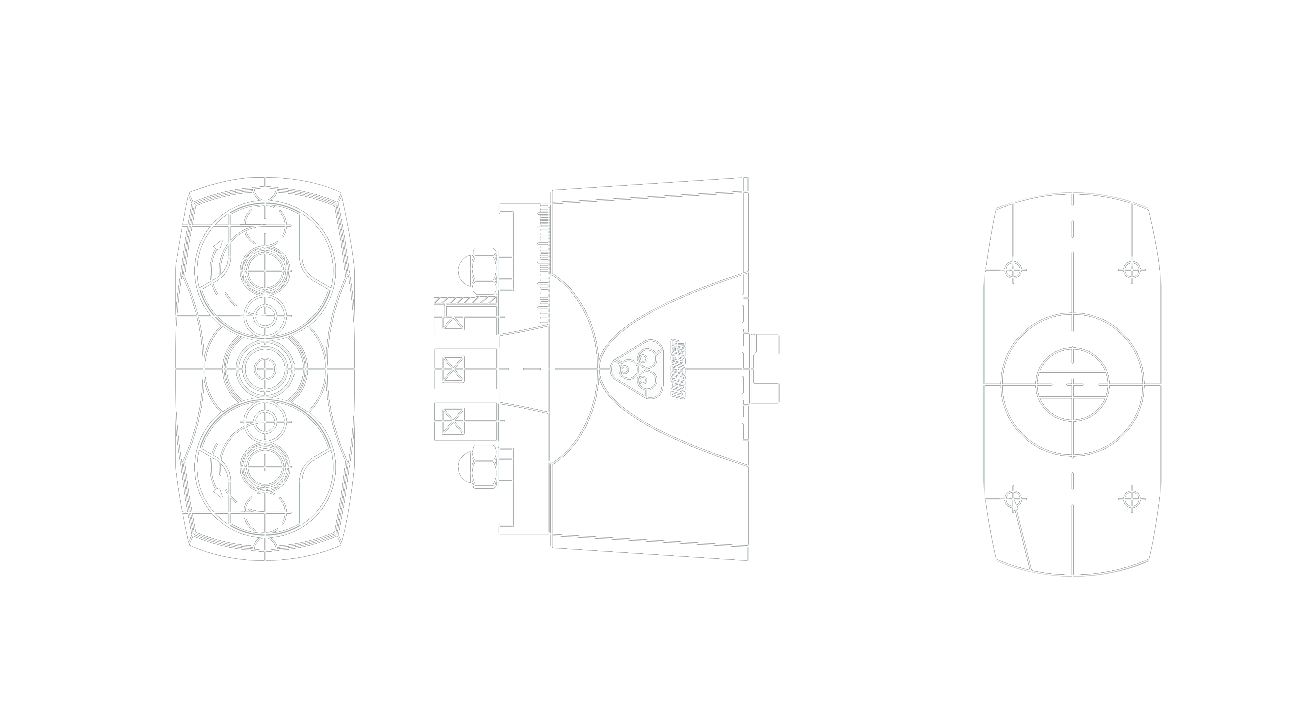

| Model | A | B | C | D | E | F | G | H | L1 | L | X | Y | Min | Max | Max Capacity | Spindle Type | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3C-W14 | 10 | 10 | 28 | 55 | 121 | 58 | 3 | 18 | 107 | 132 | 40 | 73.8 | 14 | 88 | Ø10 | m8x1.25,m10x1.5 | 2.7 |
| 3C-W20 | 10 | 10 | 28 | 55 | 150 | 71 | 3 | 17 | 112 | 137 | 46 | 88.8 | 20 | 112 | Ø15 | m8x1.25,m10x1.5 | 4.0 |
| 3C-W22 | 10 | 10 | 28 | 55 | 162 | 76 | 3 | 17 | 114 | 139 | 46 | 88.8 | 22 | 128 | Ø20 | m8x1.25,m10x1.5 | 4.8 |
| 3C-W26 | 10 | 10 | 28 | 55 | 191 | 92 | 3 | 15 | 118.5 | 143.5 | 46 | 88.8 | 26 | 152 | Ø30 | m8x1.25,x10x1.5 | 7.2 |
| 3C-W36 | 10 | 10 | 28 | 72 | 251 | 114 | 3 | 15 | 141 | 166 | 70.7 | 70.7 | 36 | 200 | Ø50 | m8x1.25,m10x1.5 | 12.8 |
