Features
- Adjustable spindle spacing: 13.5 – 164 mm
- Max. drilling capacity in wood: Ø10 – Ø50 mm
- Max. speed: 6000 RPM
- Graduated adjustment scale for precise spindle spacing adjustment and accurate hole positioning.
- Suitable for boards, solid wood, furniture components, toys, and composite materials.
- Compatible with standard drilling machines and automated drilling equipment.

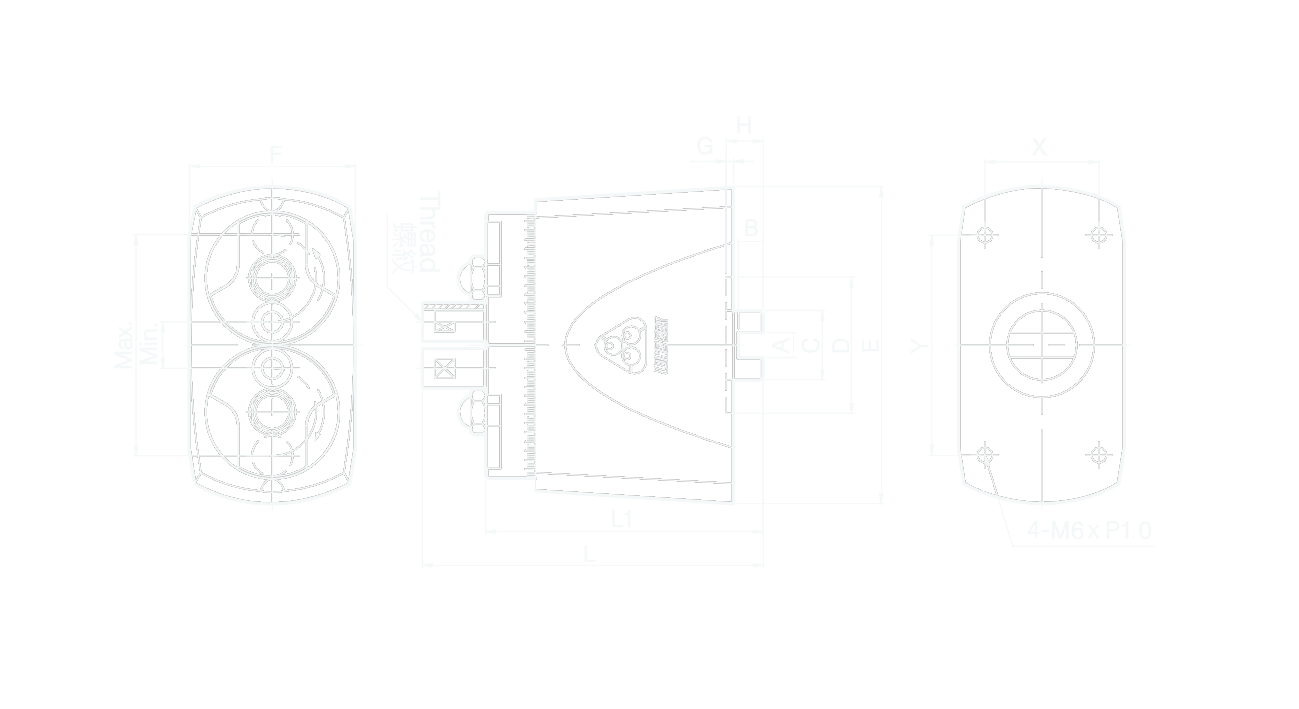

| Model | A | B | C | D | E | F | G | H | LI | L | X | Y | Min | Max | Max Capacity | Spindle Type | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2C-W13 | 10 | 10 | 28 | 55 | 106.5 | 57 | 3 | 15 | 115 | 140.5 | 40 | 73.8 | 13.5 | 73.5 | Ø10 | m8x1.25, | 2.7 |
| 2C-W18 | 10 | 10 | 28 | 55 | 127.5 | 67 | 3 | 15 | 112 | 137 | 46 | 88.8 | 18 | 90 | Ø15 | m8x1.25,m10x1.5 | 3.5 |
| 2C-W25 | 10 | 10 | 28 | 55 | 191 | 109 | 3 | 16 | 120 | 145 | 70.7 | 70.7 | 25 | 151 | Ø15 | m8x1.25,m10x1.5 | 7.4 |
| 2C-W22 | 10 | 10 | 28 | 55 | 143 | 82 | 3 | 15 | 114 | 139 | 46 | 88.8 | 22 | 106 | Ø20 | m8x1.25,x10x1.5 | 4.2 |
| 2C-W26 | 10 | 10 | 28 | 55 | 166 | 92 | 3 | 16 | 120 | 145 | 46 | 88.8 | 26 | 126 | Ø30 | m8x1.25,m10x1.5 | 5.8 |
| 2C-W36 | 10 | 10 | 28 | 55 | 211 | 114 | 3 | 16 | 138 | 163 | 70.7 | 70.7 | 36 | 164 | Ø50 | m8x1.25,mx10x1.5 | 10.0 |
| 2C-W19 | 10 | 10 | 28 | 55 | 127.5 | 67 | 3 | 15 | 112 | 137 | 46 | 88.8 | 3/4" | 3 1/2" | Ø5/8" | 7/16"x14 | 3.6 |
| 2C-W254 | 10 | 10 | 28 | 55 | 191 | 109 | 3 | 15 | 120 | 145 | 70.7 | 70.7 | 1" | 5 3/4" | Ø5/8" | 7/16"x14 | 7.4 |
